Burn Out C-100


Details:
This product is a specialized formulation to remove cotton part from cotton blended fabric during heating process. Remaining substrate on fabric shows a special hollow effect. This is two components package includes Burn Out C-100 paste and Additive Bean Powder.

Specialty:

  • Carbonize cotton substrate during heat process.

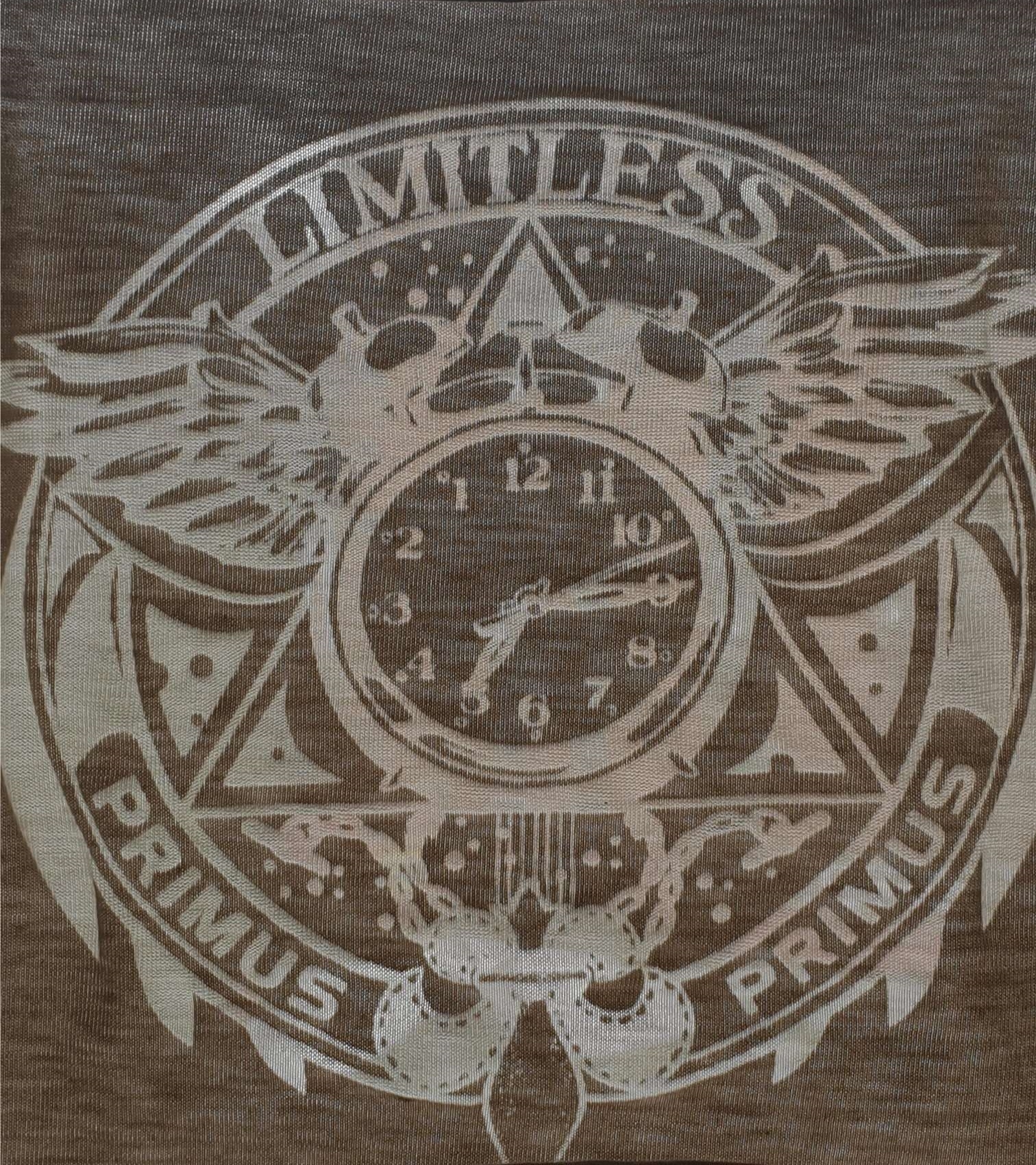

  • A beautiful design of burn-out effect
  • PVC, phthalate, APEO, Formaldehyde, Azo and Lead Free Formluations.
    Meets all key international environmental standards.
  • No harmful or distracting odors in the work place.
Guidance:

  • Select suitable cotton blended fabric and prepare the ready inks by best guided formulation.
    Ratio 1: 10% Bean Powder + 90% Water = 100% Formula one.
    Ratio 2: Ratio - Burn Out C-100 : Formula One = 1: 1
  • Well stirring the Ratio 1 until it becomes a high viscose paste form. Then, follow the Ratio 2 mixing recipe when it becomes a ready to print paste. The mixed paste is recommended to be consumed out in 24 hours. Otherwise, hydrolization would be occurred.
  • After fabric is printed, the curing or heat-press process is recommended within 1-2 hours to retain the best pattern design.
  • After cured or pressed, it is necessary to go wash off process to remove the carbonized area.
Precautions:

  • Keep the screen in the flooded position while print stops. Or, go for screen wash during a temporary stop.
  • In-sufficient curing may cause burn out paste spread out of original pattern on fabric. Moreover, polyester part may be deteriorated or stained if wash off is being delayed.
  • Containers must maintain air-tight seal while not in use.
  • During Production, heat application can be applied to speed up the process. Failure to cure ink at recommended time and temperature may result in different effect.
  • Screen must be prepared with water-resist emulsion to prevent stencil breakdown.
  • Any application not referred in this Product Information should be Pre-tested or consulted with Primus Technical Service Prior to Print.

Printing Parameters:

Cotton/Polyester blends or any other cotton blended Flash Temperature:
150℃ × 1.5 minutes or
150℃ x 20-30 seconds(heat press)
Durometer: 60-65
Edge: Sharp
80-120t/in(32-47t/cm)
10% Bean Powder 5-40℃
Use within one year of receipt. Avoid exposing under direct sunlight. Keep drums sealed tight at all times.
Tap water  Available upon request (MSDS)
